Basic Info.
Model NO.
SOV-NC Series
Product Name
700 Bar Hydraulic Nut Splitter for M12-M16
Warranty
One Year
Color
Black
OEM
Yes
Transport Package
Standard Wooden Case
Specification
CE, ISO
Trademark
SOV
Origin
China
HS Code
8467890000
Production Capacity
800 PCS/Month
Product Description

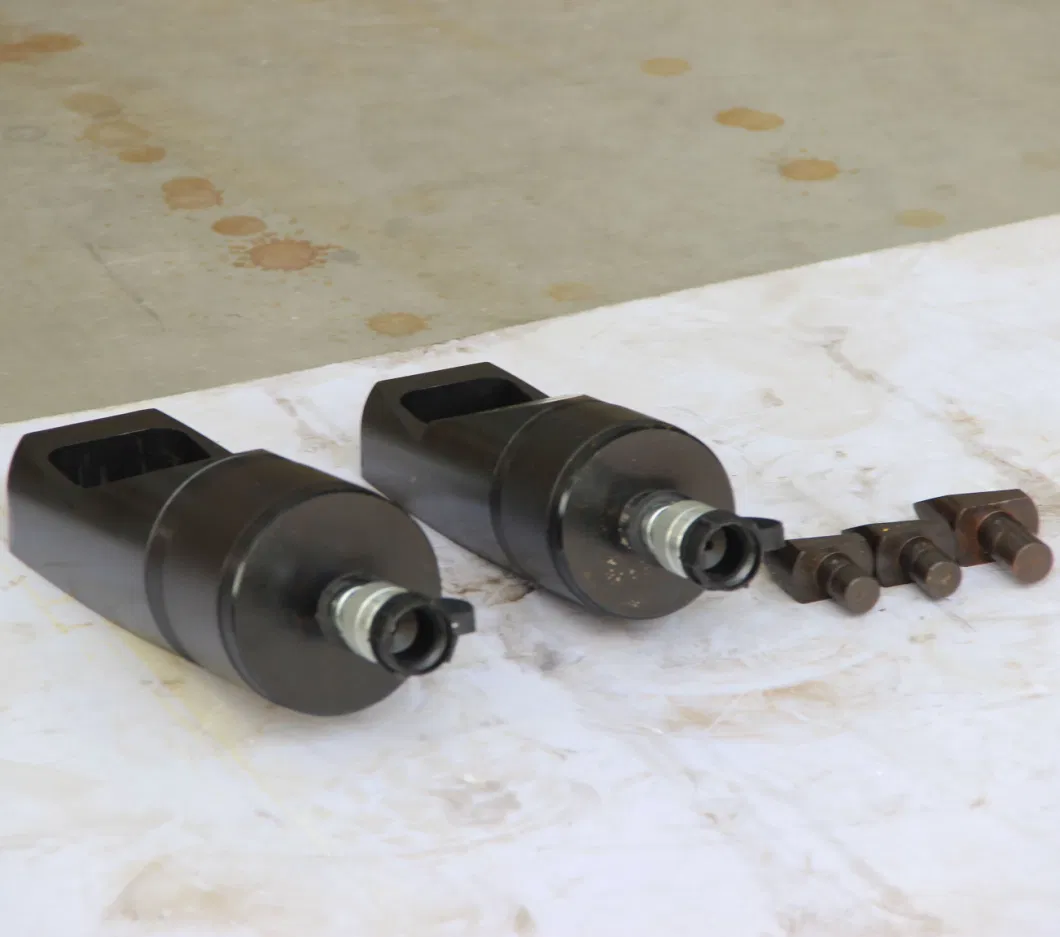

700 Bar Hydraulic Nut Splitter for M12-M16
Product Description
Parameter
Photos
Packaging & Shipping
1. Wooden case
2. Shipping is designated by customer.
Our Services
1. One Year Warranty
2. Endless free maintenance service
3. Quick response
4. OEM service available
Company Information
SOV Hydraulic Technology(Shanghai) Co., Ltd is a professional manufacturer engaged in design and production of hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, hydraulic nut splitters and hydraulic components.
Certificates
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Project Case
Our customer base includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Also, our products can be exported worldwide to many countries such as the Europe, Asia, North America, Latin America, Australia, New Zealand, the Middle East and Africa.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Main Products
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-1000 ton)
Hydraulic pumps, manual and electric type (max. up to 4000bar);
Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Product Description
- Hydraulic nut splitter for destroying the rusting screw
- Compact and economic design
- Easy to use splits nut in seconds
- Single acting, spring return cylinder
- Heavy duty chisels can be reground
- Applications include servicing trucks, piping industry, tank cleaning, petro chemical, steel construction, mining, etc.
Parameter
| Model | Bolt Size(mm) | Nut Size(mm) | Capacity(T) | Oil Capacity(cm3) |
| SOV-NC-19 | M6-M12 | 10-19 | 5 | 15 |
| SOV-NC-24 | M12-M16 | 19-24 | 10 | 20 |
| SOV-NC-32 | M16-M22 | 24-32 | 15 | 60 |
| SOV-NC-41 | M22-M27 | 32-41 | 20 | 80 |
| SOV-NC-50 | M27-M33 | 41-50 | 35 | 155 |
| SOV-NC-60 | M33-M39 | 50-60 | 50 | 240 |
| SOV-NC-75 | M39-M48 | 60-75 | 90 | 492 |

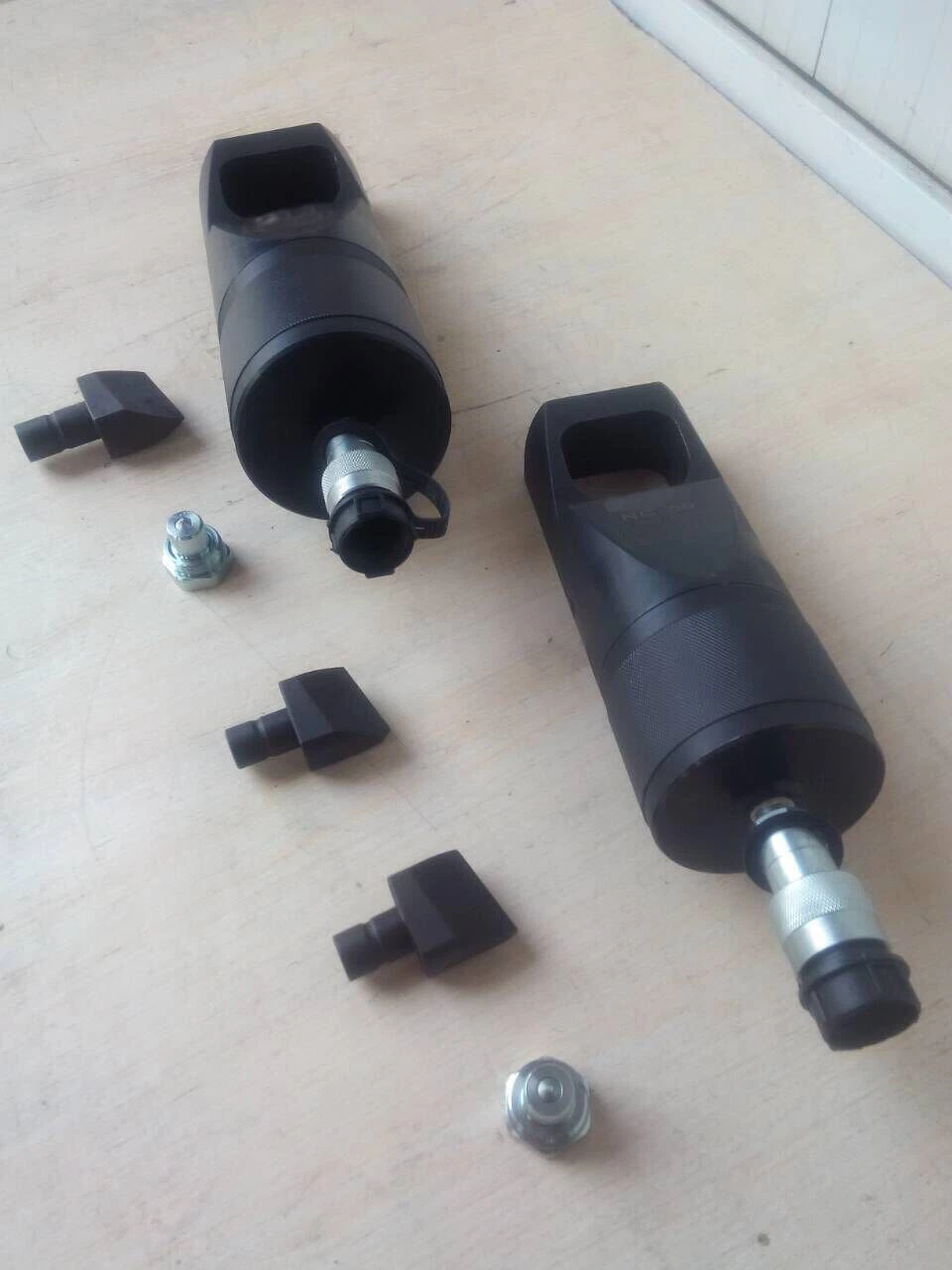

Photos
