Basic Info.
Model NO.
HY0808
Usage
Petroleum, Construction
Type
Hydraulic Crimping Tools
Transport Package
Pallet
Specification
200ton
Trademark
HY
Origin
China
HS Code
84678900
Production Capacity
200000/Month
Packaging & Delivery
Package Size
21.00cm * 17.00cm * 15.00cm
Package Gross Weight
25.000kg
Product Description

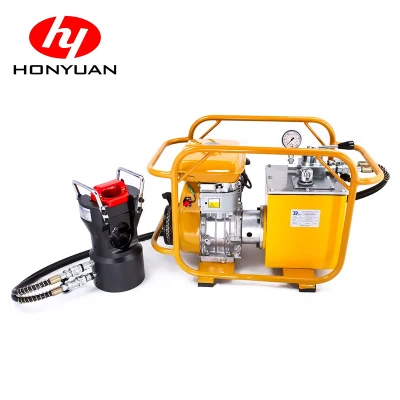

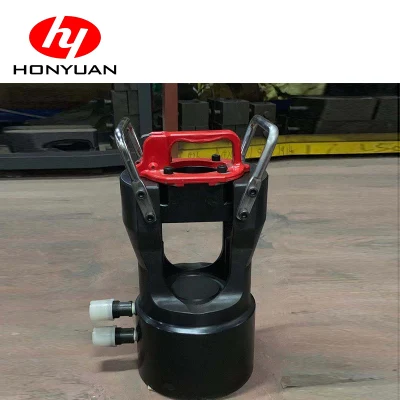

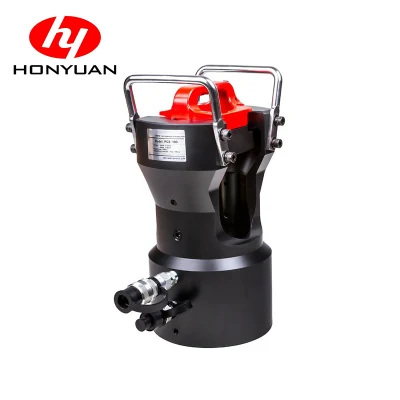

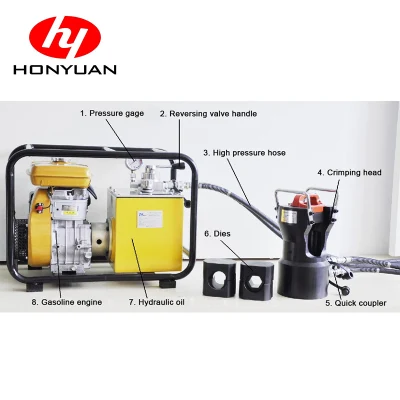

200t Hydraulic Transmission Line Compression Tools (CO-200S)
200T Hydraulic Transmission Line compression tools
| 200T Hydraulic Transmission Line compression tools | |
| Output | 200T |
| Piston travel | 35mm |
| Crimping range | Φ 14-90mm(for Cu& Alu), Φ 14-50mm(for Steel) |

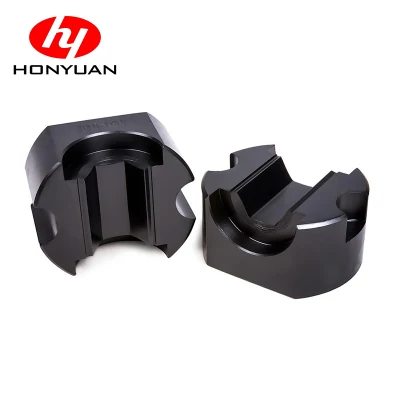

| Crimping dies supply | Φ 76mm 2 (for Cu& Alu) |
| Crimping type | hexagon |
Features&Functions:
1. It is designed for crimping overhead tension sleeve110KV and also underground cable connecting.
2. Max, sleeve size dia 76mm. Wide crimping range and less crimping times could reduce crimping distortion and control elongation.
3. Duel active hydraulic cylinder could prevent spring from elastic fatigue and avoid trouble of slow reset.
4. Reset hydraulic cylinder could shorten piston reset time.

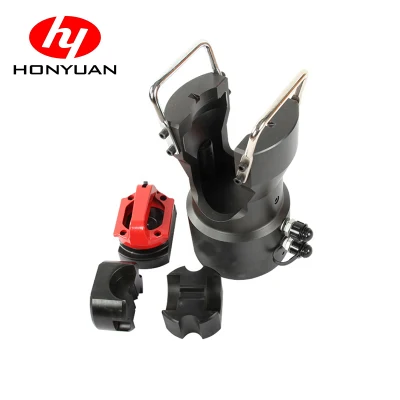

5. Moveable dies could assist operator to take out dies easily after crimping.
6. Rotating die cover could be open and close quickly to make operation and position much easier.
7. Simple design for easy maintenance.
8. Only work with big flow duel active hydraulic pump.
