Product Description

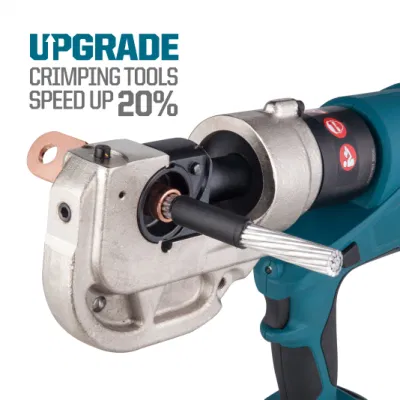

ED-400 Battery Powered Cable Crimping Tool with tonnage of 120KN for crimping range of 16-400mm2
| Rated pressure: | 120kn |
| Stroke: | 42mm |
| Oil capacity: | 160ml |
| Max crimping: | Cu400mm2/Al300mm2 |
| Cycle time: | 5-8s(CU150mm2) |
| Cycles/charger: | Approx.120cycles(CU150mm2) |
| Voltage/capacity: | 18V/3.0Ah |
| Charging time: | Approx.1 hour |

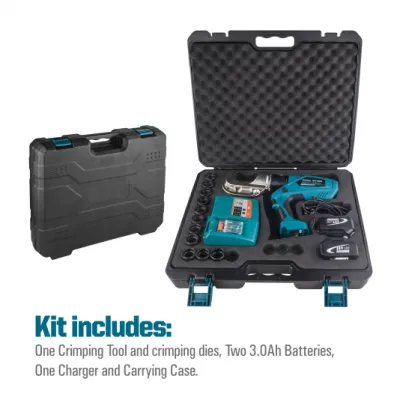

| Package: | plastic box |
| Wight incl.battery: | 4.6kgs |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm2 |
Products Description:
Micro computer control systerm-automatically detectes the pressure when in crimping with double safety protect
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and
transfer to high pressure automatically by slow crimping

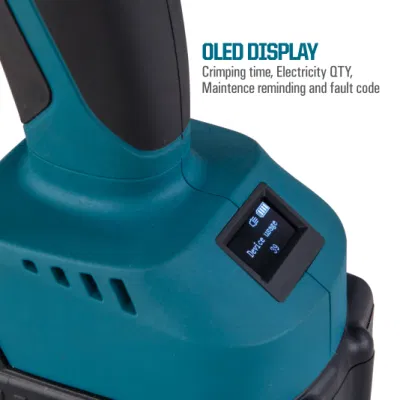

If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red
display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means
piston return to the original position
A temperature sensor makes the total stop working automatically whenthe temperature is over 60ºC under long time working, the
fault signal sounds, it means the tool can't continue to work until temperature reduced to the normal
