Product Description
Our machines can press steel cable,metal tube, wire rope, iron pipe, al tube ,ac hose,brake hose,steering hose etc. We can design and make die mold as request.

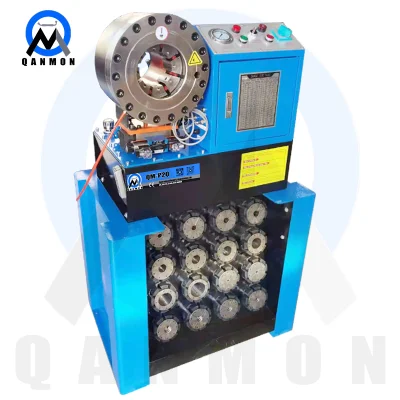

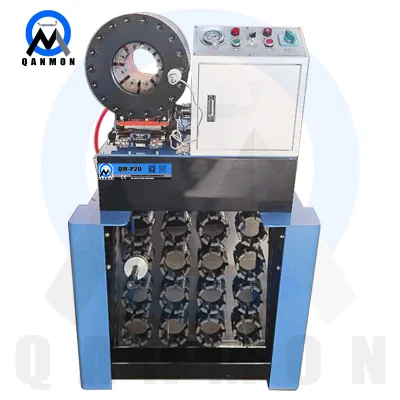

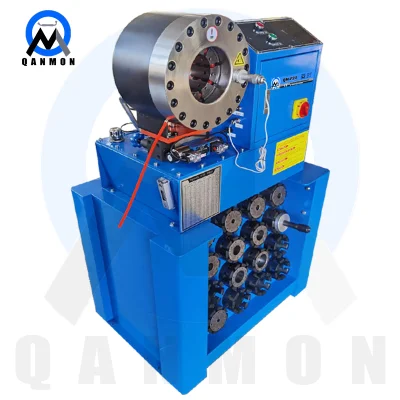

Crimping machine( Also can be called locking machine,pressing machine, crimper ,high pressure hose crimping machine, tube locking machine and so on.) is one kind of machines which can be used to lock and press the tubes assembly. It cn force contractility through the moulds to press and crimp the metal joints on the matching rubber tubes firmly.
| Crimp inner diameter | 2-51mm |
| Crimp outside diameter | 2-80mm |
| Max open | 115mm |
| Crimping force | 560T |
| Rated pressure | 31.5 MPa |
| Power of motor | 3kw |
| Scale accuracy | 0.01mm |
| Voltage | 110V/380V/220V/415V/230V or customize |
| Oil pump out-let quantity | 5L/10L |
| Dies mould | 16sets |
| Operational way | foot control,button control,automatic |
| Dies number | 15. 19. 23. 26. 31. 36. 41. 47. 55. 63 or customize |
Options: Except that standard die sets, a wide range of special die sets for different diameters, lengths and forms is available. Because the number of pictures displayed are limited, if this one above is not you want to press, please contact customer service immediately, and we will give you the most professional answer. (hose cutting machine,hose skiving machine, common type hose crimping machine, customized types can make as request,hose ,fitting and adaptors we also can supply, and we can help collecting all products together delivery to clients!) Warmly welcome to ask questions and give us suggestions.
Contact me for more details,video,factory visit, pictures etc.
Q1 : Are you factory ?
A1: Yes,we are factory,and our factory has over 20 years experice for product the machines;
Q2: Do you have the machine in stock?
A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3: Could you customize the voltage ?
A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?
A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.
Q5 : Could you customize dies molds?
A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.
Q6: Does the machine operate easily?
A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.
Q7 :Can you produce product with my own brand?
A7. Yes, it''s available except famous brand which are not allowed.
Q8: Could you customize color for me?
A8: Yes,we can customize the color regarding your requirement.
