ADM3635
Numerical Control
CNC/MNC
Processing Precision
0.2
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight
34ton
Rang of Drilling Diameter
17mm-40mm
Spindle Totor Power
7.5kw/15kw
Spindle Taper
BT40
Rotate Spindle
180-3000r/Min
Marking Force
1000kn/1200kn
Transport Package
Container
Specification
30m*7.5m*1.5m
Trademark
FINCM
Origin
China
HS Code
8462411900
Production Capacity
20
Product Description
Product Description:

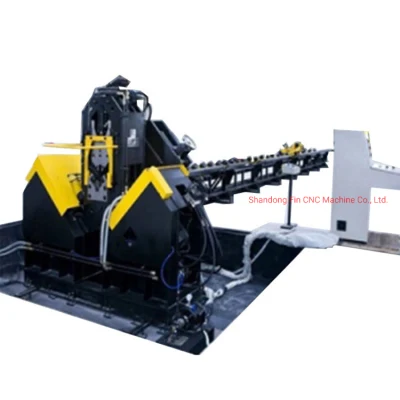

ADM3635 Angle drilling shearing and marking machine
Applicable Industry:
The machine is the special equipment used for angle steel drilling marking &shearing mainly in the field of angle steel tower industry.
Technical Specification:
Product feature:
1.There are three groups of drilling spindles on each side of drilling unit,which can install three kinds of drills with diffirent diameter .Each side of drilling spindles can move altogether by CNC to change the drilling stadia .
2.CNC drilling head adopts two linear guides to derecting,driven by AC servo motot and precision ball screw.It adopts the precision spindle (inner water cooling ),with butterfiy spring automatic and hydraulic cylinder to loosen the drilling head;It"s very convenient to replace the shank..
3.The marking unit adopts closed frame with stronger rigidity .marking stadia can bi ser at will.
4,CNC feeding trolly is driven by AC servo motor .The photoelectric encoder feeds back the information. Closed loop control to ensure positioning accuracy.
5.Hydraulic system is used to complete clamping workpiece crimping of drilling spindles ,hydraulic balance of drilling head and marking.
6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated;
Our company:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
ADM3635 Angle drilling shearing and marking machine
Applicable Industry:
The machine is the special equipment used for angle steel drilling marking &shearing mainly in the field of angle steel tower industry.
Technical Specification:
| 1 | Angle size | 140×140×10mm~ 360×360×35mm |
| 2 | Range of stadia | 50mm~ 330mm(stepless) |
| 3 | The quantity of drilling cow per side | arbitrariness |
| 4 | Quantity of drilling spindle per side | 3 |
| 5 | Range of drilling diameter(hard metal) | φ17.5mm ~ φ40mm |
| 6 | Motor power of drilling spindle | 2×7.5KW |
| 7 | Rotation speed of spindle | 180 ~ 3000r/min(stepless adjustment) |
| 8 | Spindle feeding speed | 0~ 10m/min |
| 9 | Quantity of CNC axis | 9 |
| 10 | Max length of steel angle | 12m |
| 11 | Angle feeding speed | 40m/min |
| 12 | Quantity of character group | 1 group |
| 13 | Spindle taper | BT40 |
| 14 | Nominal marking force | 1200KN |
- The finished angle conveyor is rotated to one side by pneumatic power, the max length of finished angle is12m.
- There are four sets of transverse conveyor, infeeding automatically and intermittently.
- Type of programming: keyboard input, USB interface input, floppy disc input.
- Layout: A or B
- Working environment: Working temperature: 0ºC~ 40ºC
- Power: Three phase four wire systems
- AC Voltage: 380V
- Fluctuation of voltage: ±10%
- Frequency: 50 Hz ±1
Product feature:
1.There are three groups of drilling spindles on each side of drilling unit,which can install three kinds of drills with diffirent diameter .Each side of drilling spindles can move altogether by CNC to change the drilling stadia .
2.CNC drilling head adopts two linear guides to derecting,driven by AC servo motot and precision ball screw.It adopts the precision spindle (inner water cooling ),with butterfiy spring automatic and hydraulic cylinder to loosen the drilling head;It"s very convenient to replace the shank..
3.The marking unit adopts closed frame with stronger rigidity .marking stadia can bi ser at will.
4,CNC feeding trolly is driven by AC servo motor .The photoelectric encoder feeds back the information. Closed loop control to ensure positioning accuracy.
5.Hydraulic system is used to complete clamping workpiece crimping of drilling spindles ,hydraulic balance of drilling head and marking.
6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated;
Our company:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
