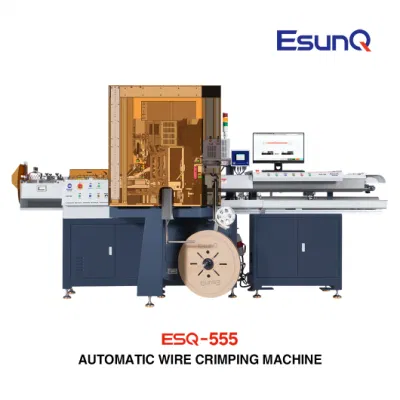

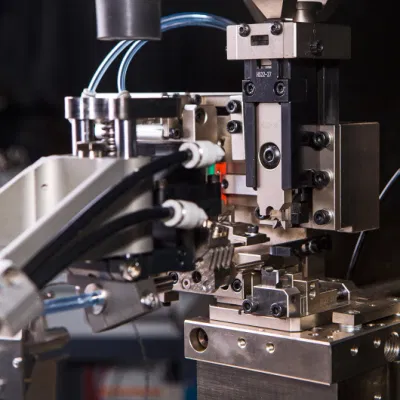

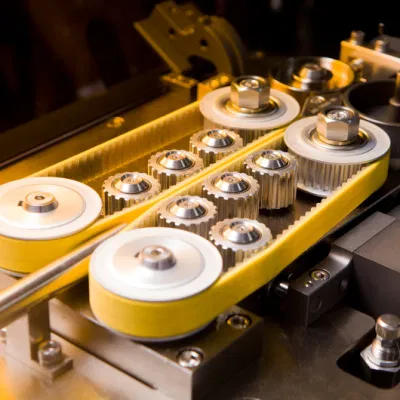

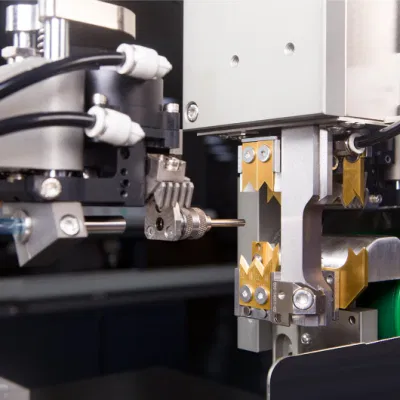

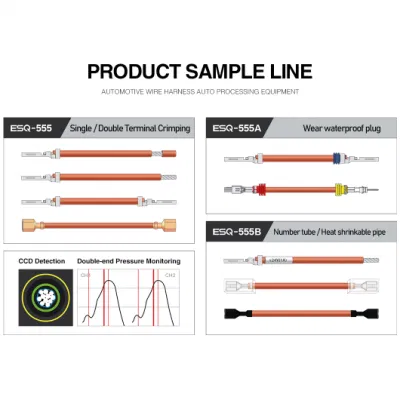

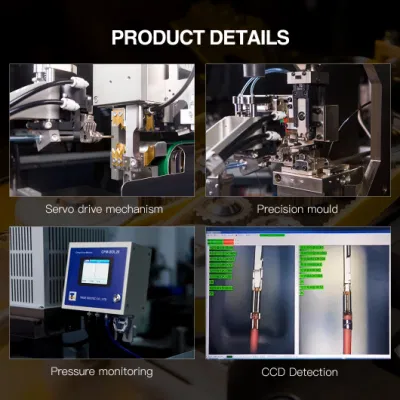

ESQ-555 adopts an opened multi-stations platform, with a computer-controlled operating system, so it can manage production procedures more convenient than any before. Also it has a high-speed control system, rigid driving mechanism, precision servo motors and pneumatic components. In this Case, the equipment's performance is stable, reliable and precise. For safety and accurate operation, ESQ-555 Automatic Wire Crimping Machine furnished with automatic glass chamber, and CCD visual detection for wire harness, as well as crimping pressure online detection system. With these configurations, engineers can check the working status of the equipment online in real time.
Technical Data
| Model | ESQ-555 | ESQ-555A |
| Power Supply | AC380V/50-60Hz | Customized |
| Total Power | 13Kw (Max) | |
| Capacity | 1000-5200 Pieces/hour (Min. Length) | |
| Compress Air | 0.5-0.7 Mpa | |
| Air Consumption | 170NL/min | |
| Wire Cuttable Length | 50-9999mm | |
| Cut Off Precision | ≤1000mm, ±1mm, ≥1000mm, (+0.2% x L) | |
| Stripping Length | 0.1-16mm | |
| Machinable Wire Diameter x 2 | 0.13-6.0m2 (AWG6-AWG10) | |
| Wire Feeding Speed | 8-12m/s (Max) | |
| Crimping Ability | 20KN (Can be Customized) | |
| Crimping Distance | 30mm (40mm Optional) | |
| Ambient Temperature | 0-40ºC | |
| Machine Size | L3720 x W1450 x H2010mm (2850mm) | |
| Machine Weight | Approximate 1000Kg | |
| Optional Parts | Seal Station, conduit station, visual module of crimper, puller, magnifying glass, micrometer, safety cover | |
